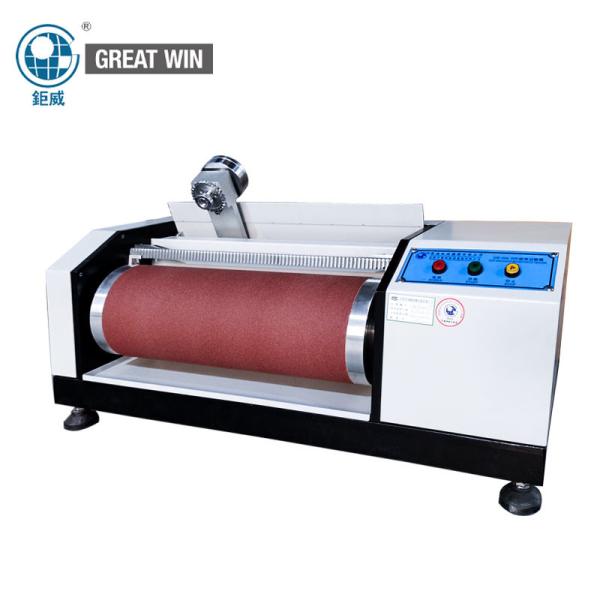

DIN abrasion resistance testing machine/Rubber testing
machine(GW-008)
•Brief introduction:
The determination of the abrasion of elastomers, rubber, soft
synthetics, leather and materials is of special importance for the
classification of the resistance to abrasive wear. It's with
characters of high efficiency good reproducibility and easy
operation.
•Principle-DIN Plastic Rubber Abrasion Tester/Wear Testing Mcachine
for Rubber
Under a predetermined contact pressure and a given area ,the
specimen with sandpaper angled to measure
abrasion resistance of the specimen subjected to rubbing on a
certain level of sandpaper, sandpaper affixed
to the surface of the drum, samples pressed on a drum with
sandpaper, and the specimen along the roller to
the lateral movement, abrasion resistance is produced at one end of
the cylindrical specimen, tests the value
of the mass loss of the specimen, by the density of the specimen to
calculate the amount of volume abrasion.
•Technical Specifications:
| Model | GW-008 DIN abrasion resistance testing machine |
| Roller length: | 460mm |
| Load weight: | 2.5,5N |
| Sandpaper grits: | 60# |
| Wear trip: | 40m |
| Dimension: | 80*40*35cm |
| N.W.: | 61kg |
| Voltage: | AC220V |
| Roll Diameter: | 150mm |
| Fixture Lateral Displacement | 4.2 mm/hoop each lap |
•Standard for :
SATRA TM 174; GB/T20991-2007 8.3 (GB/T9867)ISO EN
20344:2004;DIN53516
•Attached accessories:
1pc small drilling machine
1pc standard die mould
2pcs standard sandpapers
•FAQ:
What about usage of the machine?
we will also give your professional guidance(Product operating
manual and video),each products comes with a USB flash drive which
have all the details.
What about warranty?
Guarantee one years( if the parts damage within one year, we can
replace the part for free)
If customer need any technical support,we can help them solve their
problem through email,video meeting.We also can provide door to
door service,but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as
EN,ISO,ASTM,AATC,JIS,GB ect,and had been recognized by SATRA,CSA
international standard agency.
What about the quality?
Each instruments must be carried out 100% quality examination and
test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
