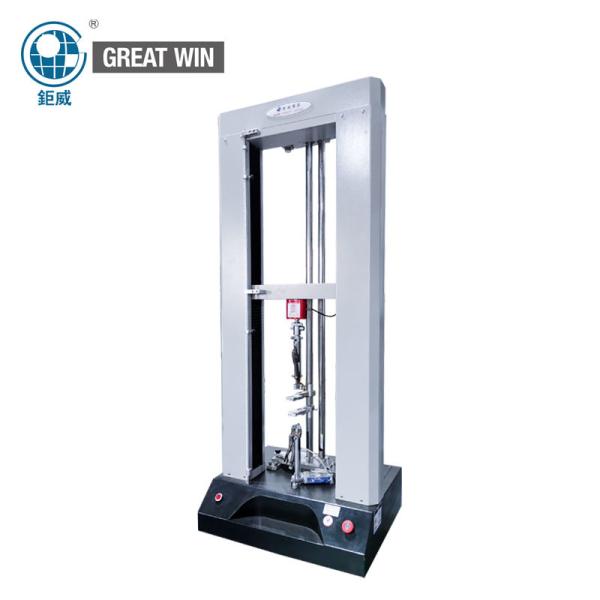

Computer system Rubber and Plastic tensile testing Strength
machine/Equipment(GW-011A1)
•Brief introduction:
The Computer system Rubber and Plastic tensile testing Strength machine also known as a materials testing machine , is applicable to
testing tensile stress , compressive stress , shearing force ,
peeling force , and elongation of materials , components , and
finished product for metal , plastic , rubber , textile , synthetic
chemicals , wire and cable , leather , ect.
•Technicl Specifications:
| Load weight | 0.25 high-precision force sensor --- NTS (original import). |
| Capacity selection | 100N 200N 500N1000N 2000N 500KG is available. |
| Accuracy level | 0.25 |
| Test force test range | 0.2% to 100% FS. |
| Power accuracy | ±0.25% |
| Power decomposition | 1/300000. |
| Power magnification | X1, X2, X5, X10, X20, X50, X100, etc. Automatic shift switching |
| Displacement indication erro | ±1% of the value of the whole process. |
| Displacement resolution | 0.00004mm. |
| Motor function | 0.4KW |
| Test width | 40 width / interval / manual take point |
| Walking space | 1500mm |
| Stroke Resolution | 0.00004mm |
| Extensometer Resolution | 0.0001 mm |
| Voltage | AC 220V |
•Standard for:
ISO7500/1, ISO 20345-2011, JJG475-88, ASTME4, DIN5122,
JISB7721/B7733, EN1002-2, BS1610,
CNS9471/9470, GB/T532-2008, GJB2589.3
Tecnical Specificat
•Attached accessories:
3 sets of grips (GW-G: Pliers grips; GW-O: Leather tear grips;
GW-C: Elastomeric grips)
2 die moulds
Lenovo business PC with 17 inch screen, software CD, Canon printer
(for computer desk, customer prepared by customers. )
We will held the responsibility for the situation evidenced our
fault. Such as short delivery, improper packing and product
quality. Other wise, in the circumstances, we are apparently not
liable for the damage, that's all right for us to help you lodge
the claim against the shipping comapny if you are inconvenient.
FAQ
What about the quality ?
Each instruments must be carried out 100% quality examination and
test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards
What about usage of the machine?
we will also give your professional guidance(Product operating
manual and video),each products comes with a USB flash drive which
have all the details.
What about warranty?
Guarantee one years( if the parts damage within one year, we can
replace the part for free)
If customer need any technical support,we can help them solve their
problem through email,video meeting.We also can provide door to
door service,but customer need to bear the travel fees.
What about standards support?
We are strictly following different international standards such as
EN,ISO,ASTM,AATC,JIS,GB ect,and had been recognized by SATRA,CSA
international standard agency.
